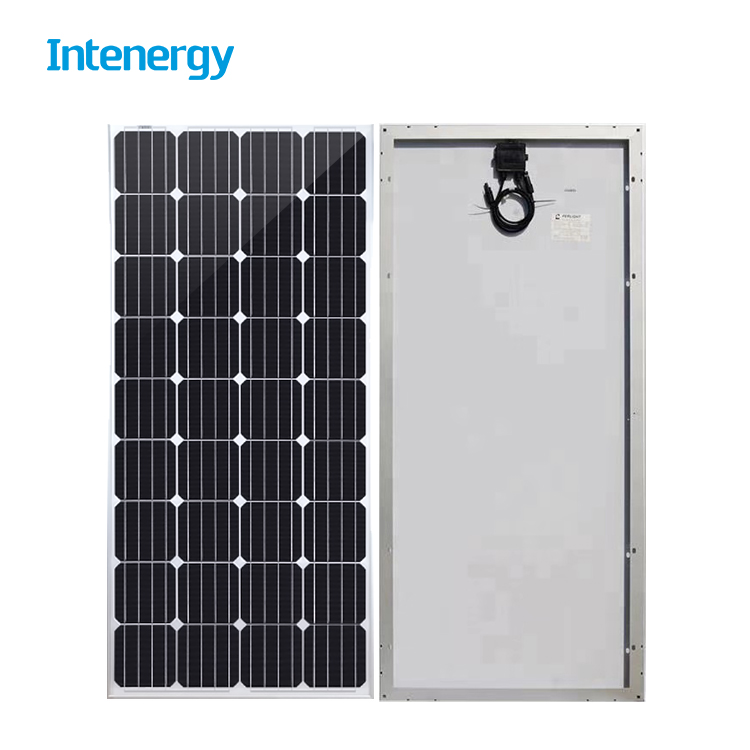

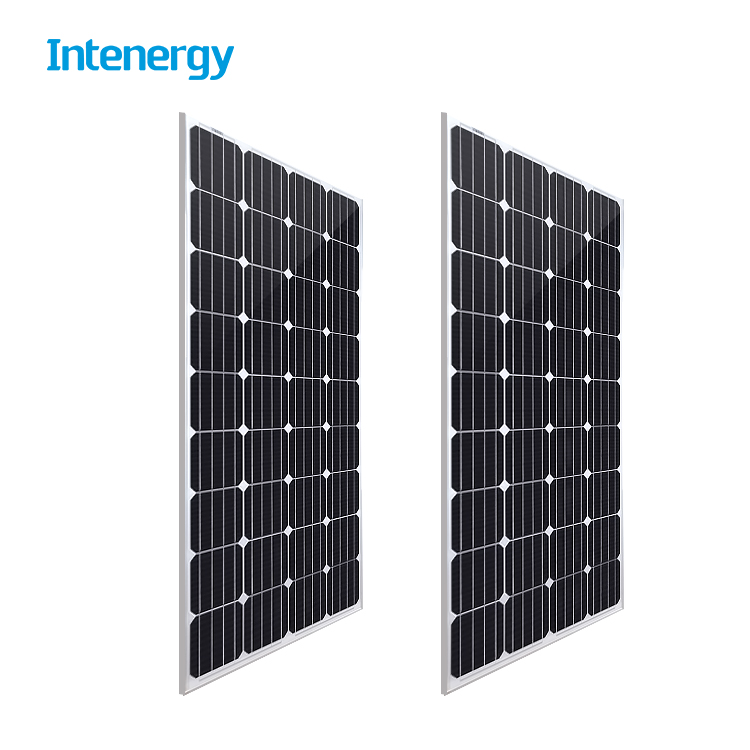

Intenergy Latest Customized 170 Watt Monocrystalline Solar Panels

二部产品详情-170M_01

IP67

ELECTRICAL PERFORMANCE
Module Type	INE-170M-36
Power Output	Pmax	W	170	175	180	185	190
Power Output Tolerances	Pmax	%	0~±3
Voltage At Pmax	Vmpp	V	19.06	19.39	19.56	19.90	20.07
Current At Pmax	Impp	A	8.77	8.95	9.14	9.30	9.47
Open-circuit Voltage	Voc	V	23.07	23.46	23.84	24.08	24.16
Short-circuit Current	Isc	A	9.45	9.58	9.70	9.81	9.97
Module Efficiency	Eff.	%	16.62	17.11	17.60	18.09	18.58
STC: 1000W/m² irradiance, 25°C cell temperature, AM 1.5g spectrum according to EN 60904-3.

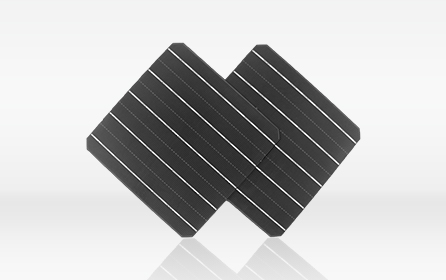

Solar Cell

* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Consistent Appearance On Each Module

Glass

* Anti-reflective Glass
* Self-cleaning Function
* Module Efficiency Is Increased By 2%
* Service Life Is As Long As 25 Years

Junction Box

* Heat Dissipation
* Long Service Life
* IP68 Protection Level
* Quality Diodes Ensure Running Safety

Frame

* Conventional Frame
* Seal-lip Design Glue Injection
* Silver Or Black Frames Are Optional
* Serrated-clip Design Tensile Strength

二部产品详情_05

二部产品详情_06
