Intenergy PERC Solar Panel 250 Watt Solar Panels Monocrystalline 250W For Home

Availability:
Quantity:
Inquire Add to Basket

Intenergy PERC Solar Panel 250 Watt Solar Panels Monocrystalline 250W For Home

INE-235M-48_01

IP67

ELECTRICAL PERFORMANCE
Module Type
INE-235M-48 (Mono solar panel)
Power Output
Pmax
230W
235W
245W
250W
Power Output Tolerances
0~+3W
Voltage at Pmax
Vmp
26.02V
26.26V
26.75V
26.97V
Current at Pmax
Imp
8.84A
8.95A
9.16A
9.27A
Open-circuit Voltage
Voc
31.49V
31.78V
32.26V
32.45V
Short-circuit Current
Isc
9.47A
9.58A
9.80A
9.91A
Module Efficiency
Eff
17.51%
17.89%
 18.65%
19.03%
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

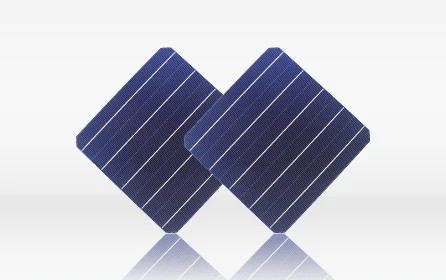

Solar Cell


* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Consistent Appearance On Each Module

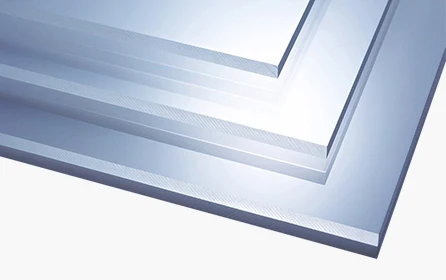

Glass


* Anti-reflective Glass
* Self-cleaning Function
* Module Efficiency Is Increased By 2%
* Service Life Is As Long As 25 Years

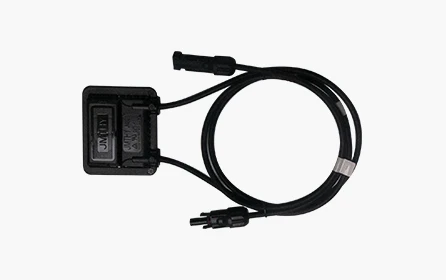

Junction Box


* Heat Dissipation
* Long Service Life
* IP68 Protection Level
* Quality Diodes Ensure Running Safety

 China Factory Wholesale Customization High Quality 380 390 400 Watt Mono Solar Panels

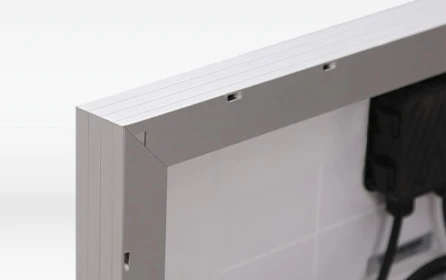

Frame


* Conventional Frame
* Seal-lip Design Glue Injection
* Silver Or Black Frames Are Optional
* Serrated-clip Design Tensile Strength



二部产品详情_05



二部产品详情_08


Payment Term L/C at sight, TT, 30% as deposit, 70% balance by TT before shipment, Western Union.
Packing Details Carton Box with pallet, Wooden Box.
Delivery Time Ship from factory within 15 days after received the deposit.
