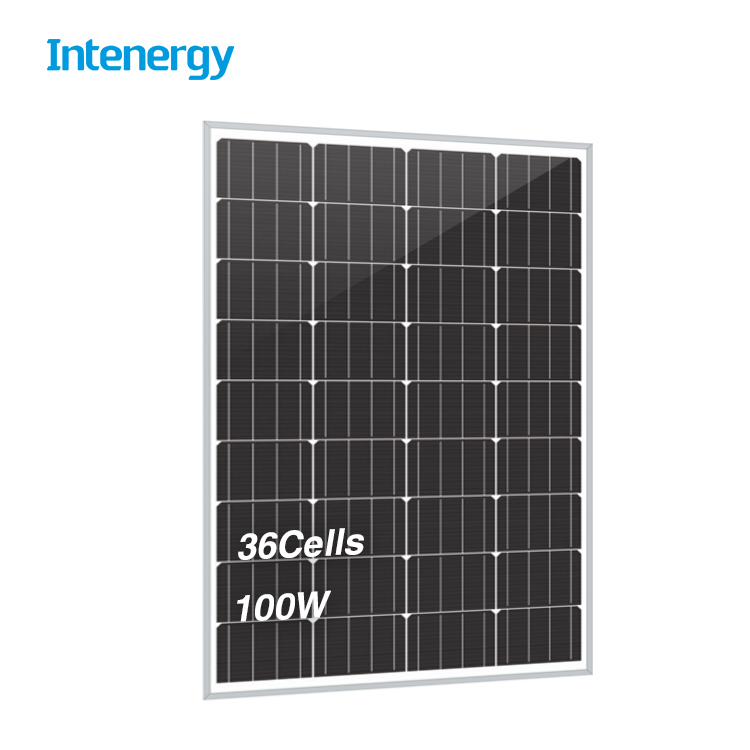

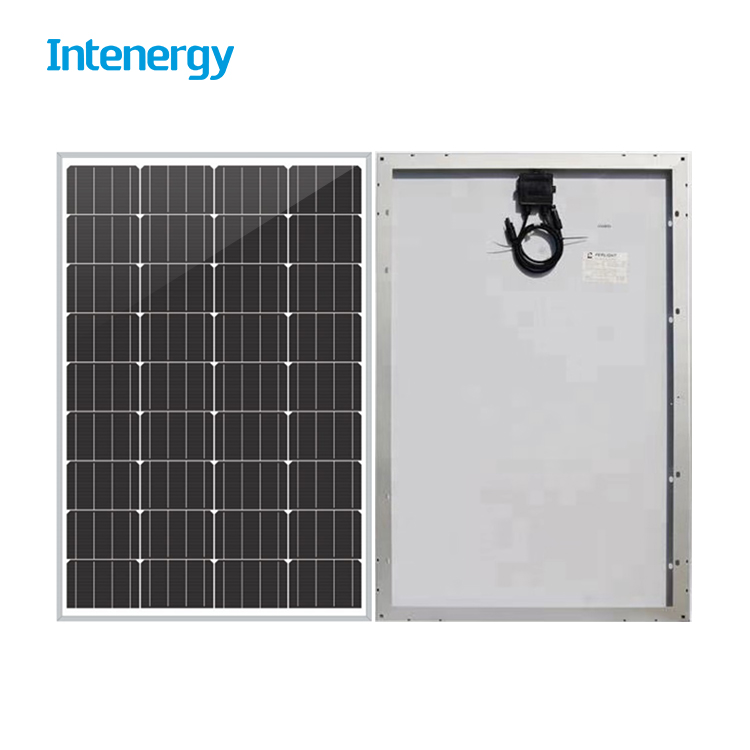

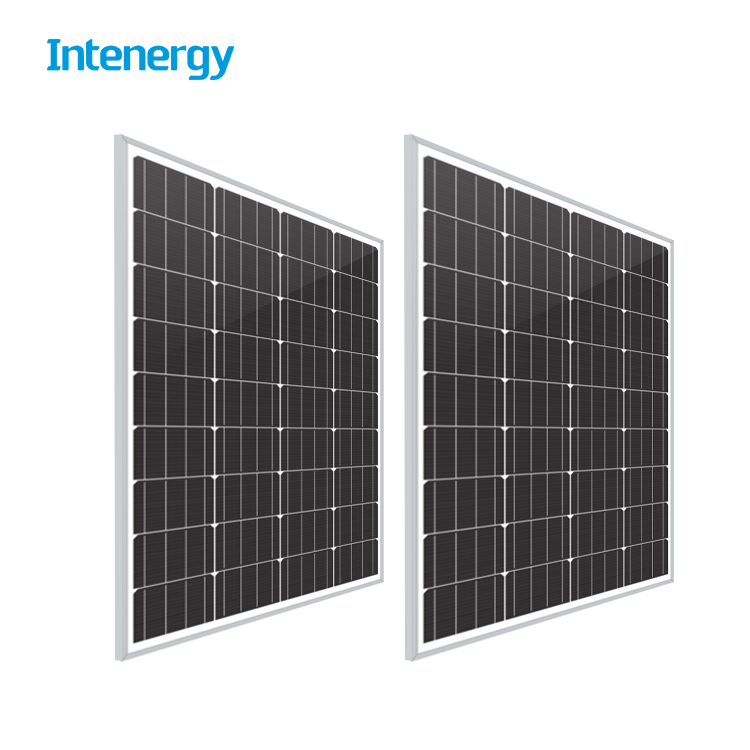

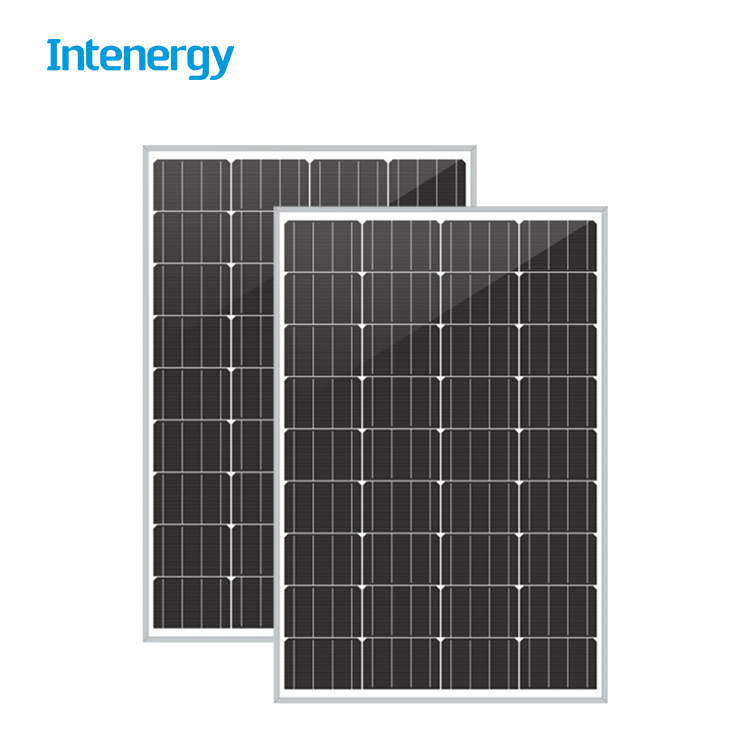

Intenergy High Quality 100W Solar Panels 100W PV Panel Is 100W Small Solar Panel For Solar System

Availability:
Quantity:
Inquire Add to Basket

Intenergy High Quality 100W Solar Panels 100W PV Panel Is 100W Small Solar Panel For Solar System
Intenergy High Quality 100W Solar Panels 100W PV Panel Is 100W Small Solar Panel For Solar System
Intenergy High Quality 100W Solar Panels 100W PV Panel Is 100W Small Solar Panel For Solar System
Intenergy High Quality 100W Solar Panels 100W PV Panel Is 100W Small Solar Panel For Solar System

INE-100M-36_01

IP67



ELECTRICAL PERFORMANCE
Module Type INE-170M-36
Power Output Pmax W 170 175 180 185 190
Power Output Tolerances Pmax % 0~±3
Voltage At Pmax Vmpp V 19.06 19.39 19.56 19.90 20.07
Current At Pmax Impp A 8.77 8.95 9.14 9.30 9.47
Open-circuit Voltage Voc V 23.07 23.46 23.84 24.08 24.16
Short-circuit Current Isc A 9.45 9.58 9.70 9.81 9.97
Module Efficiency Eff. % 16.62 17.11 17.60 18.09 18.58
STC: 1000W/m² irradiance, 25°C cell temperature, AM 1.5g spectrum according to EN 60904-3.


4栅

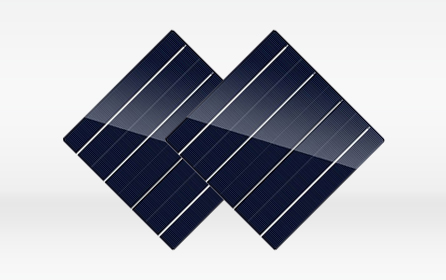

Solar Cell


* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Consistent Appearance On Each Module







单品-二部10

Glass


* Anti-reflective Glass
* Self-cleaning Function
* Module Efficiency Is Increased By 2%
* Service Life Is As Long As 25 Years





单品-二部4

Junction Box


* Heat Dissipation
* Long Service Life
* IP68 Protection Level
* Quality Diodes Ensure Running Safety





单品-二部13

Frame


* Conventional Frame
* Seal-lip Design Glue Injection
* Silver Or Black Frames Are Optional
* Serrated-clip Design Tensile Strength





二部产品详情_05

二部产品详情_06
