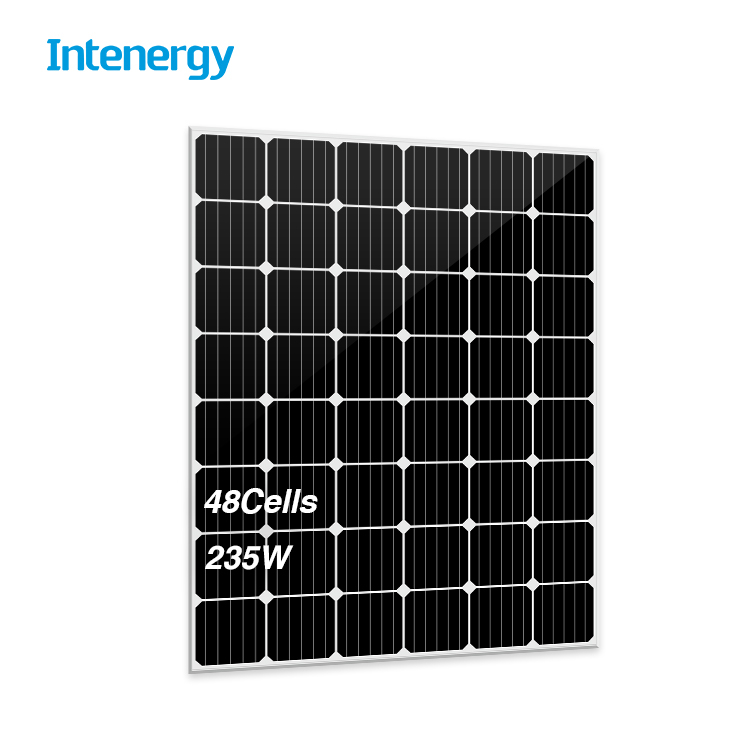

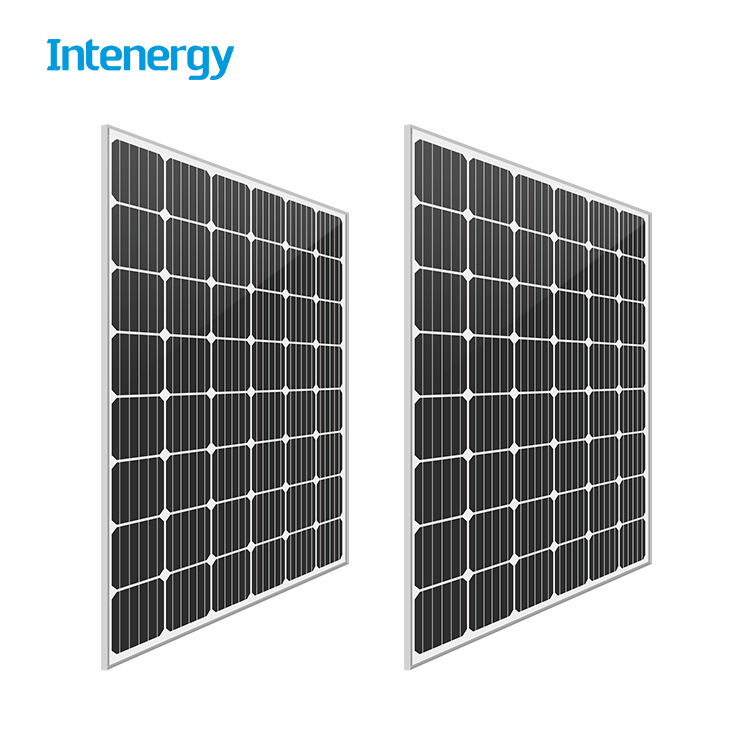

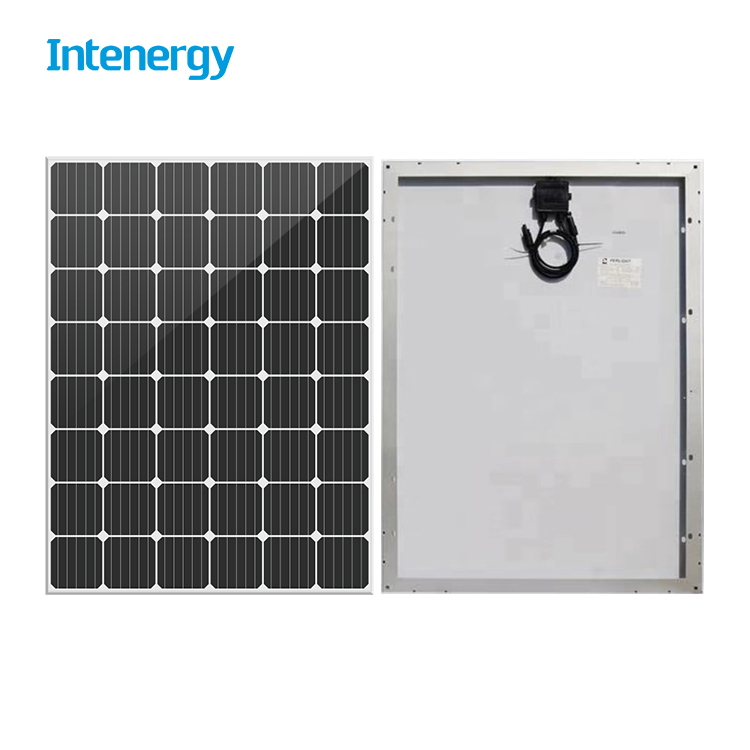

Intenergy High Quality48 Cells 235 Watt Monocrystalline Solar Cells Solar Energy Panels

Availability:
Quantity:
Inquire Add to Basket

Intenergy High Quality48 Cells 235 Watt Monocrystalline Solar Cells Solar Energy Panels
Intenergy High Quality48 Cells 235 Watt Monocrystalline Solar Cells Solar Energy Panels
Intenergy High Quality48 Cells 235 Watt Monocrystalline Solar Cells Solar Energy Panels

INE-235M-48_01

IP67


ELECTRICALPERFORMANCE
Module Type INE-235M-48
Power Output Pmax W 230 235 240 245 250
Power Output Tolerances Pmax % 0~±3
Voltage At Pmax Vmpp V 26.02 26.26 26.5 26.75 26.97
Current At Pmax Impp A 8.84 8.95 9.06 9.16 9.27
Open-circuit Voltage Voc V 31.49 31.78 32.07 32.26 32.45
Short-circuit Current Isc A 9.47 9.58 9.69 9.8 9.91
Module Efficiency Eff. % 17.51 17.89 18.27 18.65 19.03
STC: 1000W/m² irradiance, 25°C cell temperature, AM 1.5g spectrum according to EN 60904-3.


单品-二部9

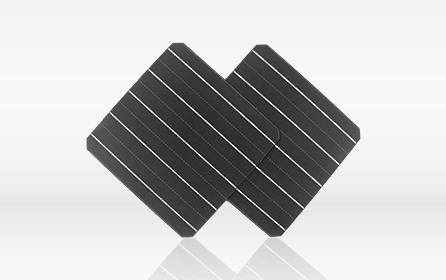

Solar Cell


* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Consistent Appearance On Each Module







单品-二部10

Glass


* Anti-reflective Glass
* Self-cleaning Function
* Module Efficiency Is Increased By 2%
* Service Life Is As Long As 25 Years





单品-二部4

Junction Box


* Heat Dissipation
* Long Service Life
* IP68 Protection Level
* Quality Diodes Ensure Running Safety





单品-二部13

Frame


* Conventional Frame
* Seal-lip Design Glue Injection
* Silver Or Black Frames Are Optional
* Serrated-clip Design Tensile Strength





二部产品详情_05

二部产品详情_06
